In heavy mining, there’s a category of component damage that most service providers treat as the end of the road. Once a bore wears, elongation or structural damage on a component like a Liebherr T282 control arm exceeds OEM tolerances, the default answer is replacement: a costly part, a long lead time, and the equipment sitting idle while the industry waits.
Morgan Engineering’s Hunter Field Service (HFS) Line Boring Division takes a different view.
This is the story of how our HFS team completed specialised control arm bore reclamation repairs on a Liebherr T282 haul truck assembly at BHP Mt Arthur.
More importantly, it is the story of how the project helped establish a controlled, repeatable repair methodology that can extend component life, reduce replacement costs and provide mining operators with a viable alternative to component replacement.
Project Snapshot
Heavy mining equipment operates in some of the harshest conditions in Australia. Over time, even well-maintained components are subject to extreme wear, structural fatigue, impact damage and bore elongation. In this case, the Liebherr T282 upper control arm strut mount bore had experienced wear and structural concerns significant enough to require full dimensional assessment and reclamation.
For the client, the pressure was straightforward: every hour a haul truck sits out of operation affects production schedules, maintenance planning and operational continuity across site. The repair couldn’t wait, and it couldn’t be temporarily repaired.
The technical demands of the job added to that pressure. Maintaining OEM bore tolerances in field conditions, conducting crack testing and QA inspections on-site, and completing precision machining safely within shutdown timeframes are not tasks that leave room for improvisation.
What sets this project apart from a standard field repair is the level of engineering development that sat behind it.
Before the team mobilised to site, Morgan Engineering had invested significant time in weld testing, destructive testing, QA validation and procedural development to establish a controlled and repeatable methodology specifically for Liebherr T282 control arm restoration. That work produced detailed weld procedures, documented work scopes, dimensional verification processes, QA inspection documentation and defined repair hold points.
The reason that matters is simple: in mining environments, repairs that rely on the knowledge or judgement of one skilled person aren’t truly repeatable. A process that is measurable, documented and consistently executable regardless of which technician is on-site is a fundamentally different thing. That’s what Morgan Engineering was building here, and it’s why the project carried value beyond this single repair.

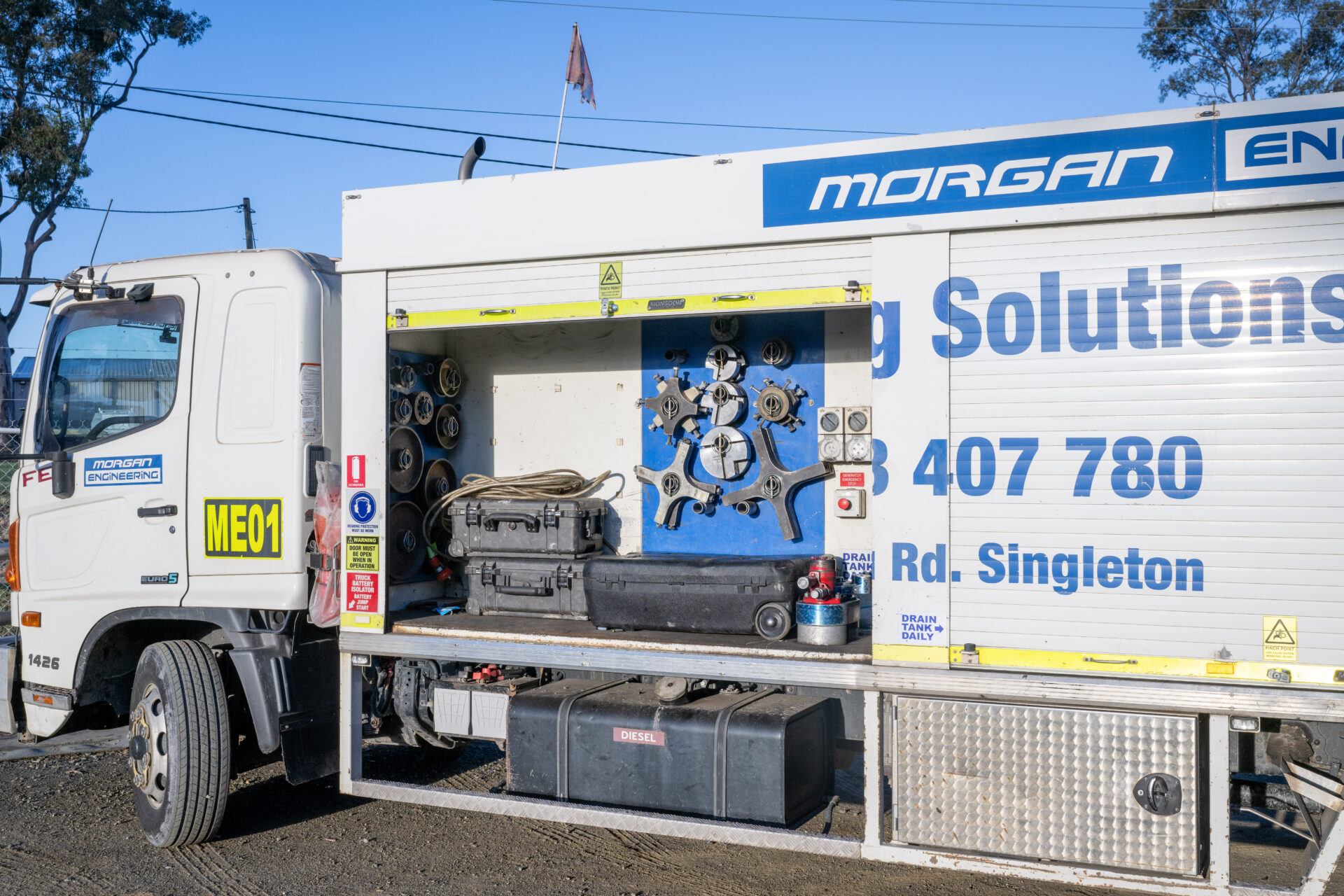

With the procedural framework in place, the HFS team mobilised experienced technicians and specialised portable machining equipment to BHP Mt Arthur.
The work began with disassembly, pressure cleaning, and a thorough inspection: full dimensional checks, bore measurements, OEM specification verification and mechanical damage assessment. Every decision that followed was based on measured data, not visual judgement.
Before any machining or weld work commenced, magnetic particle crack testing was completed in line with Australian Standards to identify any structural defects in the component. This step is not optional. Returning a component to service without understanding its full structural condition creates risk that no amount of machining precision can correct.

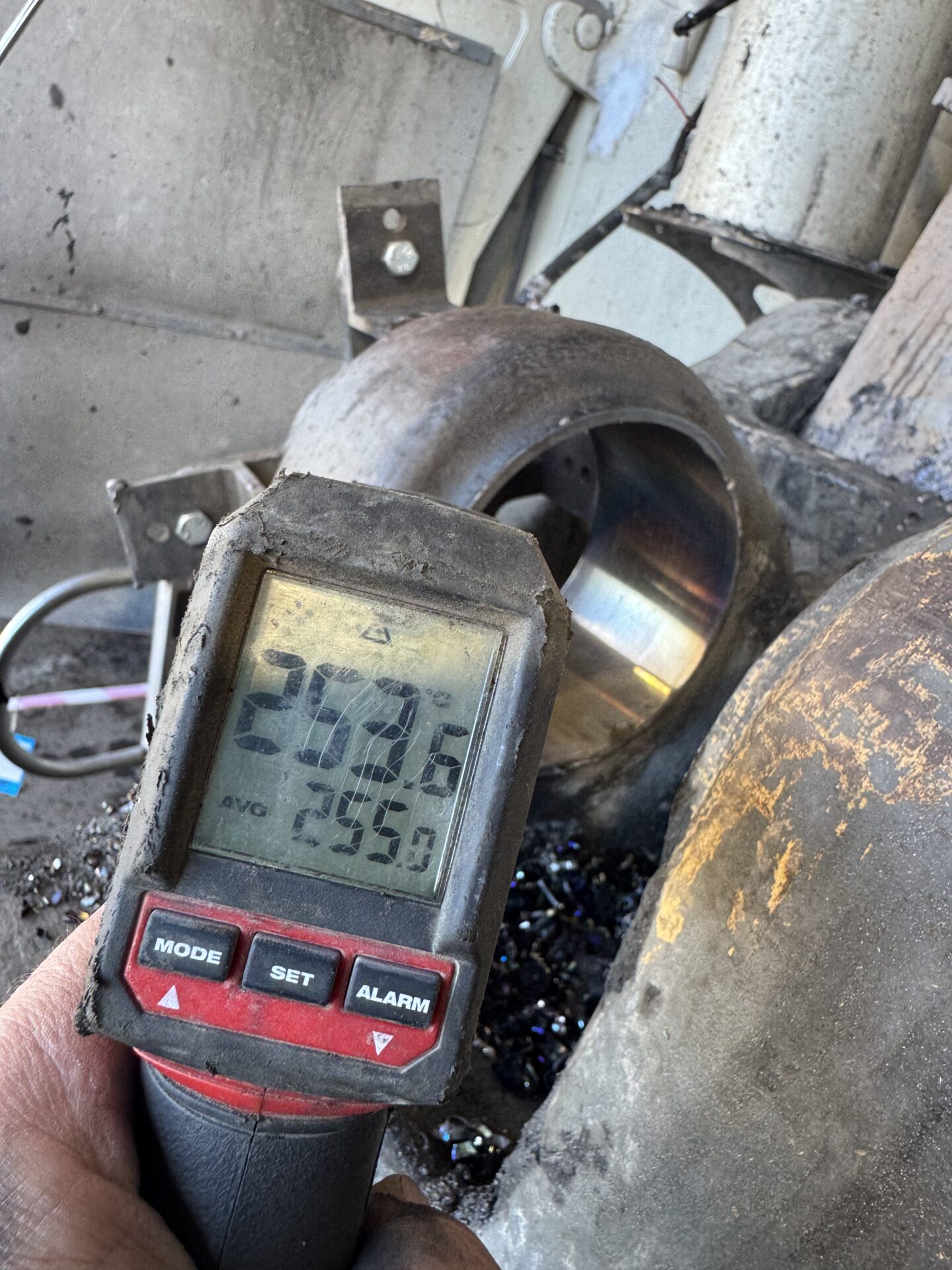

With assessments and approvals complete, the worn bore was reclaimed using approved weld procedures and controlled pre-heat processes, before final machining operations began. Using specialised portable line boring equipment, the bore was machined back to precise dimensional tolerances with accurate alignment and controlled surface finish quality.
Final quality assurance inspections, dimensional verification and test fitting were completed prior to sign-off. Every stage was supported by documented hold points and procedural sign-offs to ensure accountability and repeatability throughout.
Precise bore alignment is not simply a quality metric. It directly affects component lifespan, structural load distribution, equipment reliability and long-term machine performance.
When bore alignment is poor, or when repairs are carried out without controlled procedures, the consequences compound over time: accelerated component failure, increased wear on pins and bushes, and unplanned downtime that carries real cost for mining operations. The initial saving from an uncontrolled repair rarely holds up against what follows.
Poor bore alignment can also introduce side loading into associated pins, bushes and structural components, accelerating wear throughout the assembly and increasing maintenance costs beyond the original repair area. Portable line boring allows these repairs to be completed on-site, without requiring the component to be removed and sent to a workshop, and without the lead time and cost of full replacement. For operations managing large mobile mining fleets, that distinction matters considerably when it comes to both maintenance planning and production continuity.
Joshua Whittington, HFS Customer Support Supervisor at Morgan Engineering, put it simply:
“Anyone can machine a bore. Developing a controlled repair methodology that delivers repeatable, QA-backed results in field conditions is a different level entirely. Through testing, procedure development, and precision machining, our team has developed a process that not only restores these components safely back to service but improves long-term serviceability beyond what was traditionally expected from these assemblies.”
That comment reflects something important about how Morgan Engineering approaches field service work. The capability isn’t just in the machining. It’s in the procedural rigour, the testing investment and the willingness to develop a reliable system rather than treating each job as a standalone event.
The completed repairs restored the Liebherr T282 control arm bore to within OEM specification, and the component returned to operation at BHP Mt Arthur.
More broadly, the project validated Morgan Engineering’s HFS bore reclamation methodology as a controlled, repeatable and engineering-backed solution for a component type the industry has traditionally treated as non-repairable.
As mining operations continue to look for ways to reduce downtime, extend component life and improve asset reliability, the case for advanced bore reclamation and on-site field machining becomes stronger. Replacing components that can be safely reclaimed is an avoidable cost. The Morgan Engineering HFS team has demonstrated that with the right procedures, the right equipment and the right QA controls in place, these components can be brought back to service reliably and consistently.
Fast, reliable and safe. That’s what the work at BHP Mt Arthur delivered, and it’s the standard we hold ourselves to on every job.
Morgan Engineering is a regional heavy engineering business specialising in machining, line boring, bore reclamation, fabrication and on-site maintenance for the mining and resources sector. Our Hunter Field Service Line Boring Division operates across mine sites throughout New South Wales and beyond.
